Project Description

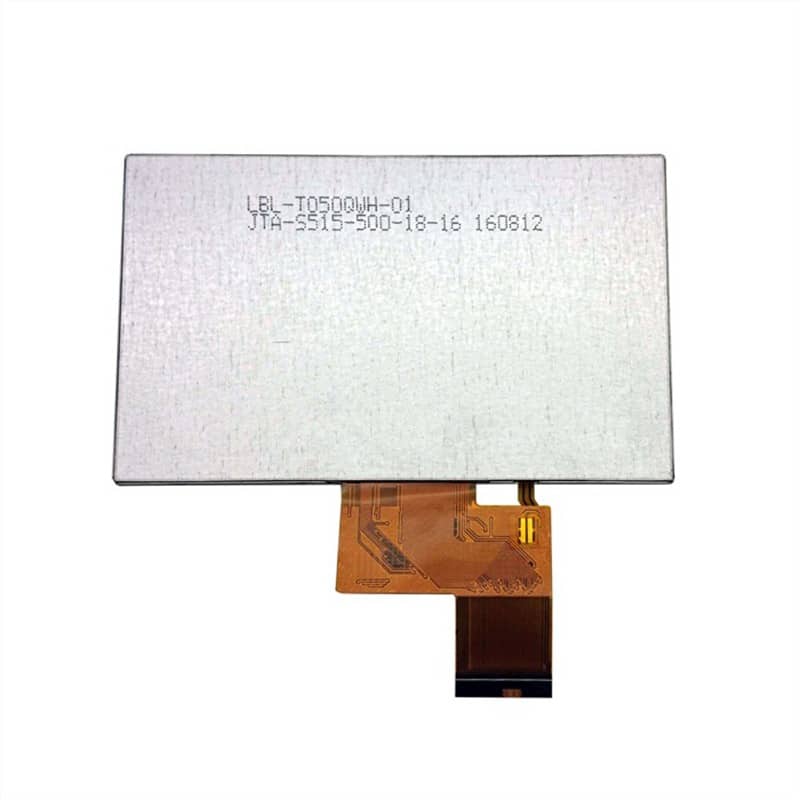

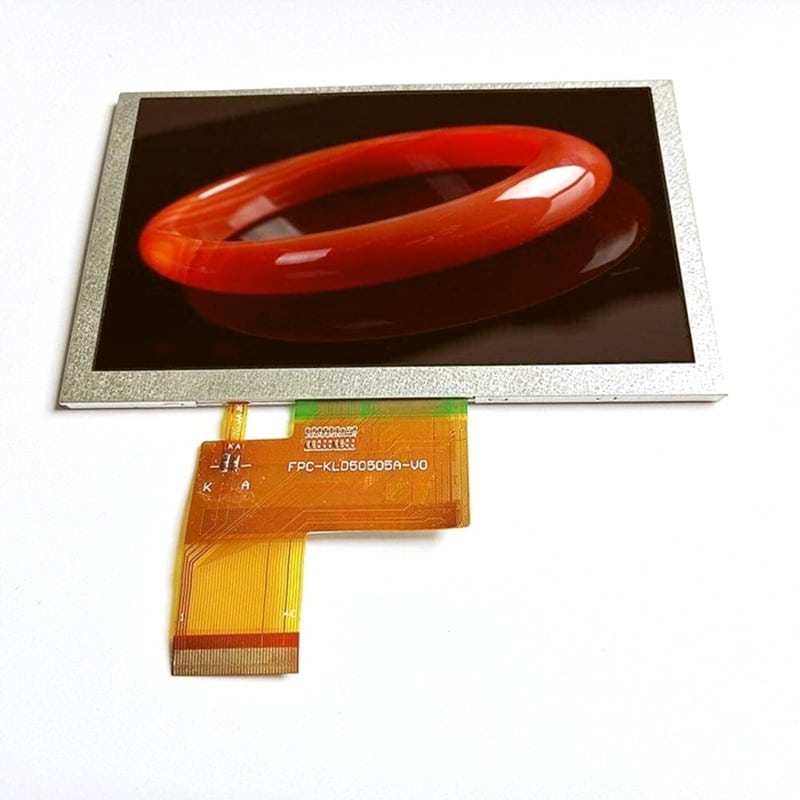

1） 5 inch 800*480 Touch LCD(1)
VIS050IPS03T is an LCD panel module model that adopts a 5 inch IPS type LCD with 800*480 resolution. CTP (Capacity Touch Panel) and CG(Cover Glass) can be added according to user requirements. Based on the substantial and long-term shipments of 5 inch LCD panels, we can guarantee a stable supply of this 5″ LCD display panel module throughout the life cycle of your product.
Based on the panel’s high-cost performance and excellent storage and operating temperature range, this type of LCD display module can be widely used in smart homes, pos machines, industrial instruments (meters), and small medical equipment and other products.
FPCA cable pin defines & shape alignment, frame size, and backlight brightness can all be customized according to your needs.
We also provide compatible HDMI boards.
We have several 5-inch LCD products with different specifications for you to choose from, so as to save your development and customization costs. Welcome to contact us.
Other 5 inch LCD display module (LCM) models that can be replaced by VIS050IPS03T are AA050MG03, ET050WV01-K, EJ050NA-01G, G050VTN01.1, etc.
| Panel From | Hannstar/Innolux |
|---|---|
| Panel Size | 5 inch |
| Panel Model | HSD050BDW3-A00 ,HE050NA-01F |
| LCM Model | VIS050IPS03T |
| Panel Type | a-Si IPS TFT-LCD, LCM module |
| Resolution | 800(H) X 480(V) |
| Luminance | 450 cd/m² (Typ.) |
| Display Area | 108.00(H)*64.80(V) (mm) |
| Outline | 120.70(H)*75.80(V)*2.95(T) (mm) |
| Interface Type | 40 pins RGB/TTL |
| View Direction | ALL |
| Touchscreen | Optional |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Pin No. | Symbol | I/O | Function |
| 1 | VLED- | I | LED back light(Cathode) |
| 2 | VLED+ | I | LED back light(Anode) |
| 3 | GND | P | Ground. |
| 4 | VDD | P | Power supply |
| 5-12 | R0~R7 | I | Red data bus |
| 13-20 | G0~G7 | I | Green data bus |
| 21-28 | B0~B7 | I | Blue data bus |
| 29 | GND | P | Ground. |
| 30 | PCLK | I | Data clock |
| 31 | DISP | I | Standby mode select pin |
| 32 | HSYNC | I | Line sync signal |
| 33 | VSYNC | I | Frame sync signal |
| 34 | DE | I | Data enable pin |
| 35 | NC | – | No connection. |
| 36 | GND | P | Ground. |
| 37 | XR | I | Touch Panel Control pin |
| 38 | YD | I | Touch Panel Control pin |
| 39 | XL | I | Touch Panel Control pin |
| 40 | YU | I | Touch Panel Control pin |
2） 5 inch 800*480 Touch LCD(2)
| Panel From | Hannstar |
|---|---|
| Panel Size | 5 inch |
| Panel Model | HSD050BDW3-A00 |
| LCM Model | VIS050IPSM0 |
| Panel Type | a-Si IPS TFT-LCD, LCM module |
| Resolution | 800(H) X 480(V) |
| Luminance | 650 cd/m² (Typ.) |
| Display Area | 108.00(H)*64.80(V) (mm) |
| Outline | 120.70(H)*75.90(V)*3.05(T) (mm) |
| Interface Type | 40 pins, 24 Bit, RGB/TTL |
| View Direction | ALL（IPS） |
| Touchscreen | Optional |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Important： Due to the website layout and format limit, this specification & Datasheet of 1.3 inch square LCD module is for reference only. For complete SPEC&DATASHEET of the PDF format, please contact us.
1. Introduction
- Scope of application
This specification applies to the LCD module that is supplied by Hongkong Vis Industry Co., Ltd
LCD specification: Dots 800xRGBx480.
As to the basic specification of the driver IC, refer to the IC (Sitronix: ST7262A) specification and data book.
All material & processing of the LCD module should be Lead-Free.
- TFT features
Structure: TFT PANEL+IC +FPC+BL; IPS Type LCD;
800 dot-segment and 480 dot-common outputs; 16.7M Color;
White LED backlight; RGB 24BIT interface
- Applications
Medical equipment, industrial equipment, instrumentation, video playback, refrigerator,
range hood, cooking machine, air conditioning.
2. LCM General specification
| Item | Standard Value | Unit |
| LCD Type | Normally Black | — |
| Drive Element | TFT Active Matrix | — |
| Number of Pixels | 800*3RGB(H)X480(V) | Dots |
| Pixel Arrangement | RGB Stripe | — |
| Pixel Pitch (W*H) | 0.135(H) x 0.135 (V) | mm |
| Active area | 108(H) x 65.8(V) | mm |
| Module Size (W*H*T) | 120.7 x 75.9 x3.05 | – |
| Viewing Direction | ALL O’CLOCK |
|
| TFT Driver IC | ST7262A | – |
| TFT Interface | 24 BIT RGB Interface | – |
| Approx. Weight | TBD | g |
| Touch Structure | G+F+F |
|
| Touch Driver IC | FT5436 | – |
| Touch Interface | IIC |
|
3. Absolute Maximum Rating
| Characteristics | Symbol | Min. | Max. | Unit |
| LCM Operating Temperature | TOPR | -20 | +70 | °C |
| LCM Storage Temperature | TSTG | -30 | +80 | °C |
| TP Operating Temperature & Humidity(20% ~ 90%RH) | TOPR |
|
| °C |
| TP Storage Temperature & Humidity(20% ~ 90%RH) | TSTG |
|
| °C |
| Humidity | RH | – | 90 | % |
4. Electrical Characteristics
- TFT DC Characteristics
| Characteristics | Symbol | Min. | Typ. | Max. | Unit |
| Supply Voltage for I/O | VDDIO |
|
|
| V |
| Supply Voltage for (DC/DC) | VDD | 3.0 | 3.3 | 3.6 | V |
| Supply Voltage for (DC/DC) | AVDD |
|
|
| V |
| Supply Voltage for (DC/DC) | AVEE |
|
|
| V |
|
Current Consumption | IDD | – | TBD | – | mA |
| IDD-SLEEP |
| TBD |
| uA |
- Back-Light Unit Characteristics
The back-light system is an edge-lighting type with 18white LEDs. The characteristics of the back-light are shown in the following tables.
| Characteristics | Symbol | Min. | Type | Max. | Unit | Notes |
| Forward Voltage | VDD | 18 | 18.6 | 19.2 | V | – |
| Forward Current | ILED | — | 60 | – | mA | – |
| Luminance (With LCD) | Lv |
| 650 | — | cd/m2 | – |
| LED Lifetime | N/A | —- | 30,000 | — | Hr | Note 1 |
Note:
- The “LED lifetime” is defined as the module brightness decrease to 50% of original brightness at IL=20mA/LED. The LED lifetime could be decreased if operating IL is larger than 25mA/LED.
5. Module Function Description
- LCM Pin Descriptions
| Pin No. | Symbol | Description |
| 1 | LEDK | POWER SUPPLY- FOR BACKLIGHT CATHODE |
| 2 | LEDA | POWER SUPPLY+ FOR BACKLIGHT ANODE |
| 3 | GND | Ground |
| 4 | VDD | POWER SUPPLY |
| 5-12 | R0-R7 | Data bus |
| 13-20 | G0-G7 | Data bus |
| 21-28 | B0-B7 | Data bus |
| 29 | GND | Ground |
| 30 | DCLK | Pixel clock signal in RGB I/F |
| 31 | DISP | DISPLAY ON/OFF |
| 32 | HSYNC | Horizontal sync. Signal in RGB I/F |
| 33 | VSYNC | Vertical sync. Signal in RGB I/F |
| 34 | DE | Data enable signal in RGB I/F mode 1 |
| 35 | NC | NC |
| 36 | GND | Ground |
| 37 | XR | NC |
| 38 | YD | NC |
| 39 | XL | NC |
| 40 | YU | NC |
6. Timing Characteristics
7. Optical Characteristics
| Items | Symbol | Condition | Specifications | Unit |
All left side data are based on VISLCD product reference only | |||
| Min. | Typ. | Max. | ||||||
| Contrast Ratio | CR |
| – | 1000 | – | – | ||
| Response Time | TBRB | – | 15 | 20 | ms | |||
| TBFB | – | 15 | 20 | ms | ||||
|
Chromaticity | Red | XBRB |
| / |
| – | ||
| YBRB |
| / |
| – | ||||
| Green | XBGB |
| / |
| – | |||
| YBGB |
| / |
| – | ||||
| Blue | XBBB |
| / |
| – | |||
| YBBB |
| / |
| – | ||||
| White | XBWB | 0.28 | 0.31 | 0.34 | – | |||
| YBWB | 0.29 | 0.32 | 0.35 | – | ||||
|
Viewing angle | Hor. | f1(3 o’clock) |
Center CR≥10 | 70 | 80 | – |
deg. | |
| f2(9 o’clock) | 70 | 80 | – | |||||
| Ver. | q2(12 o’clock) | 70 | 80 | – | ||||
| q1(6 o’clock) | 70 | 80 | – | |||||
| Uniformity |
|
|
|
| — |
| % | |
Note 1: Definition of Contrast Ratio (CR):
The contrast ratio can be calculated by the following expression. Contrast Ratio (CR) = L63 / L0
L63: Luminance of gray level 63 L0: Luminance of gray level 0 CR = CR (10)
CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note 5.
8. Reliability Test Item
| No. | Test Item | Test Condition | Notes | |
| 1 | High Temp. Storage | +70°C / 240H | 1. Functional test is OK. Missing Segment, short, unclear segment non-display, display abnormally and liquid crystal leak is not allowed. 2. No low-temperature bubbles, end seal loose and fall, frame rainbow. | |
| 2 | Low Temp. Storage | -20°C / 240H | ||
| 3 | High Tempe. Operating | +80°C / 160H | ||
| 4 | Low Tempe. Operating | -30°C / 160H | ||
| 5 | High Temperature /Humidity storage | 60+5°C x 90%RH / 240H | ||
|
6 |
Thermal and cold shock |
Static state，-30℃（1 hour）~85℃ （1
hour）~ -30℃（1 hour），packaging，
10 cycles | ||
|
1. Function test is OK. 2. No glass crack, chipped glass, end seal loose and fall, epoxy frame crack, and so on. 3. No structure loose and fall. | ||||
|
7 |
Vibration Test | Frequency: 10Hz~55Hz Amplitude:1.0mm, 2 hours for each the direction of X, Y | ||
|
8 |
Dropping test | Pack products into the carton box. Drop it from 80cm height to ground. Once for each side of the carton |
