Project Description

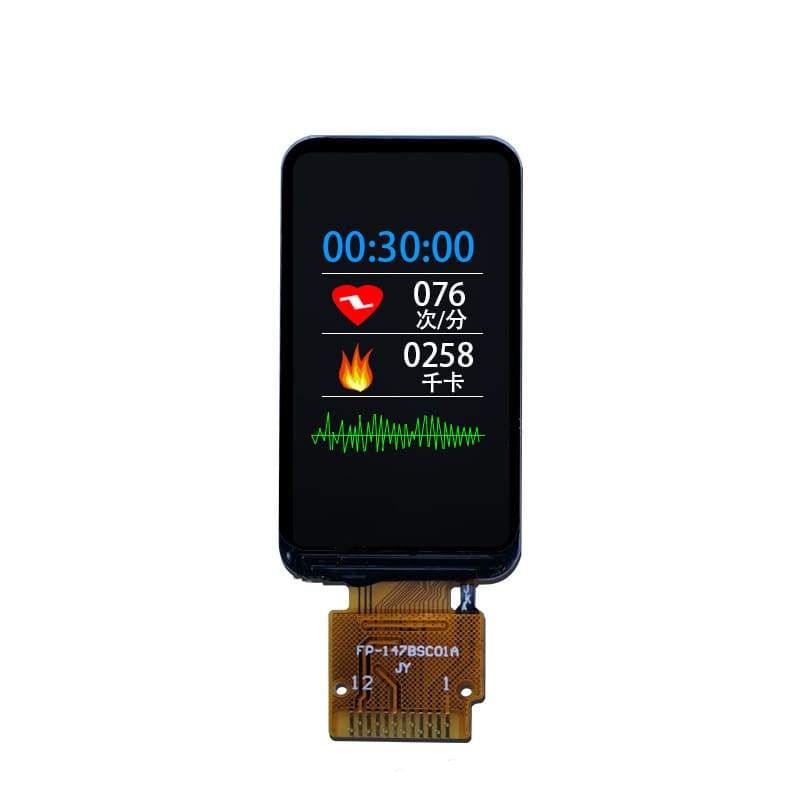

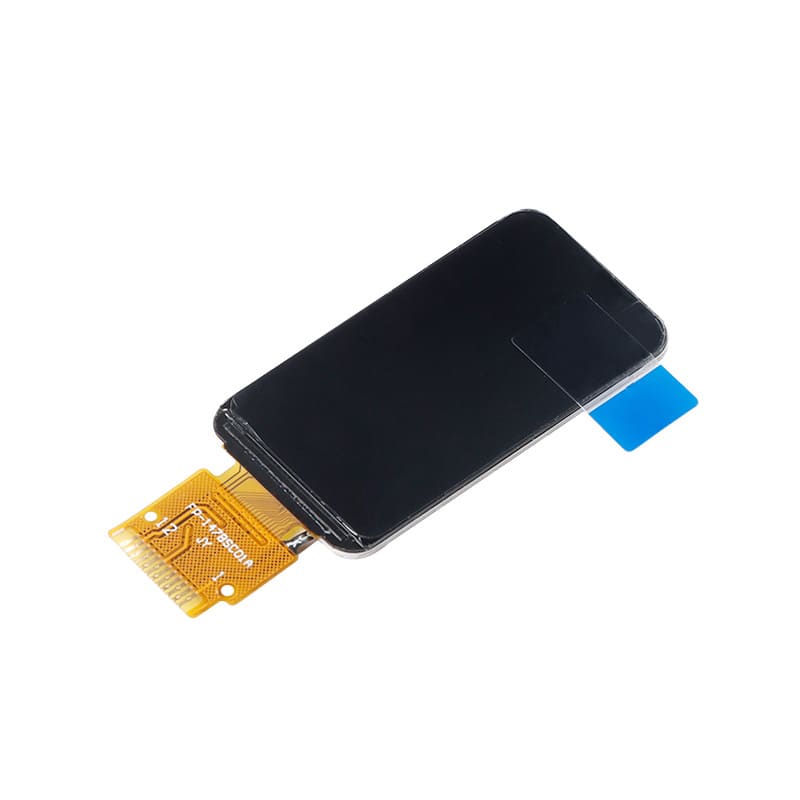

  • 1.54 inch IPS Square LCD Screen Module(320*320)(front)

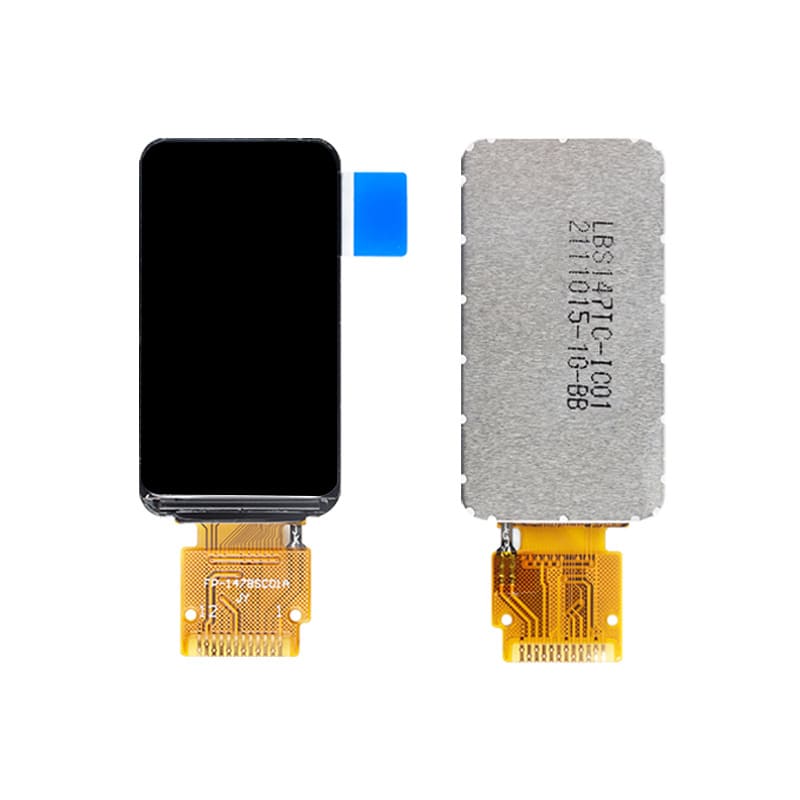

  • 1.54 inch IPS Square LCD Screen Module(320*320) (back)

VIS016IPS01 is a 1.54 inch  TFT LCD display panel module model that adopts IPS type square LCD with 320*320 resolution. CTP (Capacity Touch Panel) can be added according to user requirements. Based on the square characteristics and wide Angle of view of this 1.54-inch LCD module, it is especially suitable for smart wear (watch) devices and various instrument display. We can guarantee a stable supply of this LCD screen module throughout the life cycle of your product.

FPCA shape alignment, polarizer material, and backlight brightness can be adjusted according to your needs.

Other 1.54 inch LCD screen module (LCM) models that can be replaced by VIS016IPS01 are LH154Q01-TD01, HX154A1511,TXW154011S0, UE015QV-RB15-A005, etc.

Panel From Hannstar/Century
Panel Size 1.54 inch
Panel Model HSD015FPN1-F00
LCM Model VIS016IPS01
Panel Type  a-Si IPS TFT-LCD Module
Resolution 320(H) X 320(V)
Luminance 350 cd/m² (Typ.)
Display Area 27.72(H) × 27.72(V)(mm)
Outline 31.82(H) x 33.87(V) x 1.8(D)(mm)
Interface Type 24 pins  MIPI
View Direction  ALL O’Clock
Touchscreen Optional
Operating Temperature -20 ~ 70 °C
Storage Temperature -30 ~ 80 °C

1.54 inch IPS Square LCD Screen Module(320*320) dimension drawing

  • The square lcd screen

  • Full-angle IPS display screen

  • High stability
