Product  Image


1)  1.65 inch 240*295 IPS LCD



 1.65 inch 240*295 ST7789V LCD



2) 1.69 inch 240*280 IPS LCD



 1.7 inch 240*280 ST7789V LCD for smart watch

1) 1.65 inch 240*295 IPS LCD

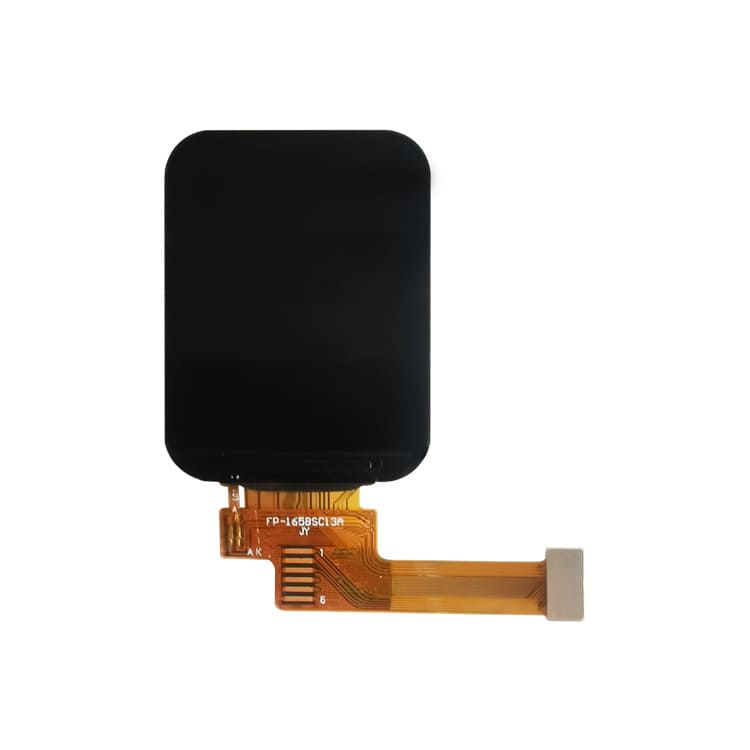

  • 1.65 inch 240*295 ST7789V LCD

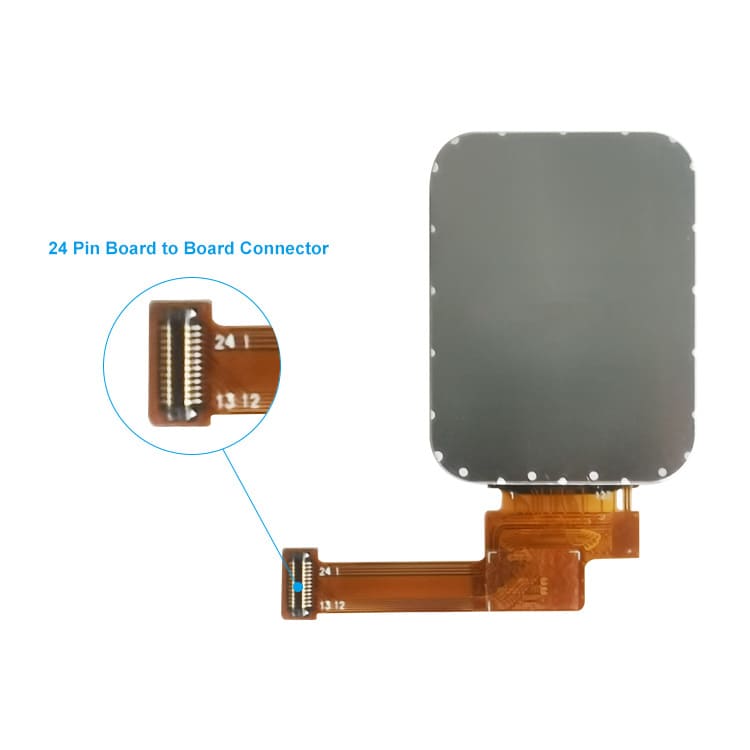

  • 1.65 inch 240*295 ST7789V smart watch LCD(back)
  • 1.65 inch 240*295 ST7789V smart watch LCD

  • Full-angle IPS display screen

  • High brightness

  • High stability and cost performances

This 1.65 inch  TFT LCD display panel module model that adopts IPS type square LCD with 240*295 resolution. CTP (Capacity Touch Panel) can be added according to user requirements. Based on the wide Angle of view of this 1.54-inch LCD module, it is especially suitable for smart wear (watch) devices and various instrument display. We can guarantee 3~5 years supply of this LCD screen module throughout the life cycle of your product.

Flexible PCB shape alignment can be customized according to your needs.

We offer a choice of both soldered and plug-in and connector connections.

Panel From Hannstar/Century
Panel Size 1.65 inch
Connection Soldering / Plugging / Connector
LCM Model VIS165SLK03
Panel Type  a-Si IPS TFT-LCD Module
Resolution 240(H) X 295(V)
Luminance 500 cd/m² (Typ.)
Display Area 25.92(H) × 31.86(V)(mm)
Outline 28.13(H) x 36.93(V) x 1.5(D)(mm)
Interface Type 4 line SPI/8 bit 8080
View Direction  ALL O’Clock
Touchscreen Optional
Operating Temperature -20 ~ 70 °C
Storage Temperature -30 ~ 80 °C

1.65 inch 240*295 ST7789V LCD drawing







2) 1.69 inch 240*280 IPS LCD

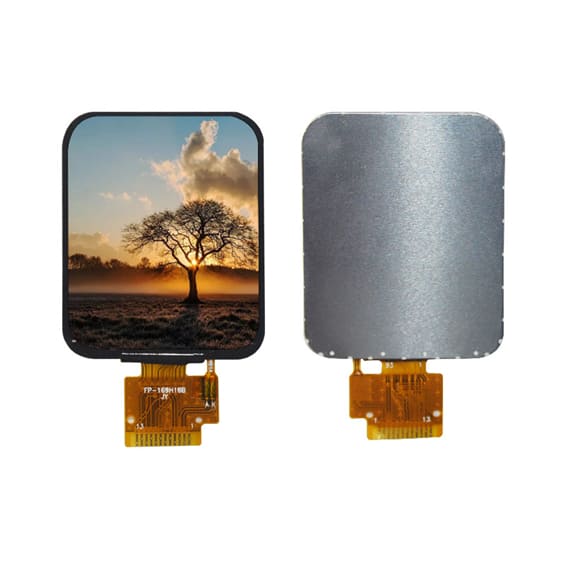

  • 1.7 inch 240*280 ST7789V LCD for smart watch

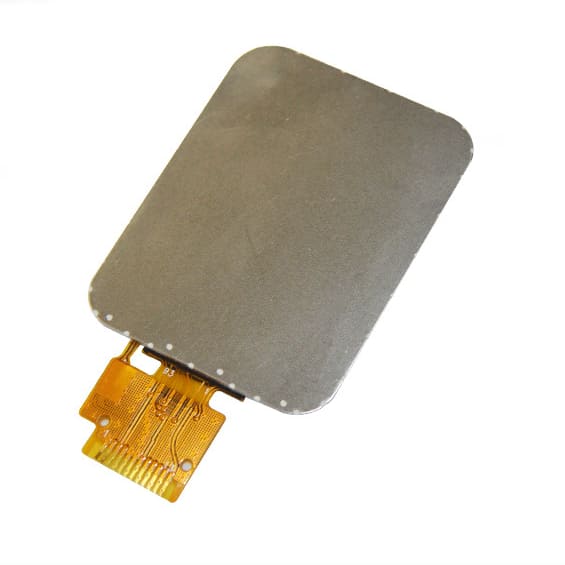

  • 1.7 inch 240*280 ST7789V LCD for smart watch(back)
  • 1.69 inch 240*280 ST7789V smart watch LCD

  • The IPS lcd screen

  • High resolution

  • High brightness

  • High stability

This 1.69 inch  TFT LCD module model that adopts IPS type square LCD with 240*295 resolution. CTP (Capacity Touch Panel) and RTP can be added according to user requirements. Based on the IPS display and high resolution of this 1.5-inch LCD module, it is especially suitable for smart watch (wear) devices and various instrument display. We can guarantee 3~5 years supply of this LCD screen module throughout the life cycle of your product.

Flexible PCB shape alignment can be customized according to your needs.

We offer a choice of both soldering and plugging and connector connections.

Panel From Hannstar
Panel Size 1.69 inch
Connection Soldering / Plugging / Connector
LCM Model VIS169TY-IG01
Panel Type  a-Si IPS TFT-LCD Module
Resolution 240(H) X 295(V)
Luminance 500 cd/m² (Typ.)
Display Area 27.97(H) x 32.63(V) (mm)
Outline 30.07(H) x 37.43(V) x1.56 (D) (mm)
Interface Type 4 line SPI / 8 bit 8080
View Direction  ALL
IC ST7789V
Touchscreen Optional
Operating Temperature -20 ~ 70 °C
Storage Temperature -30 ~ 80 °C

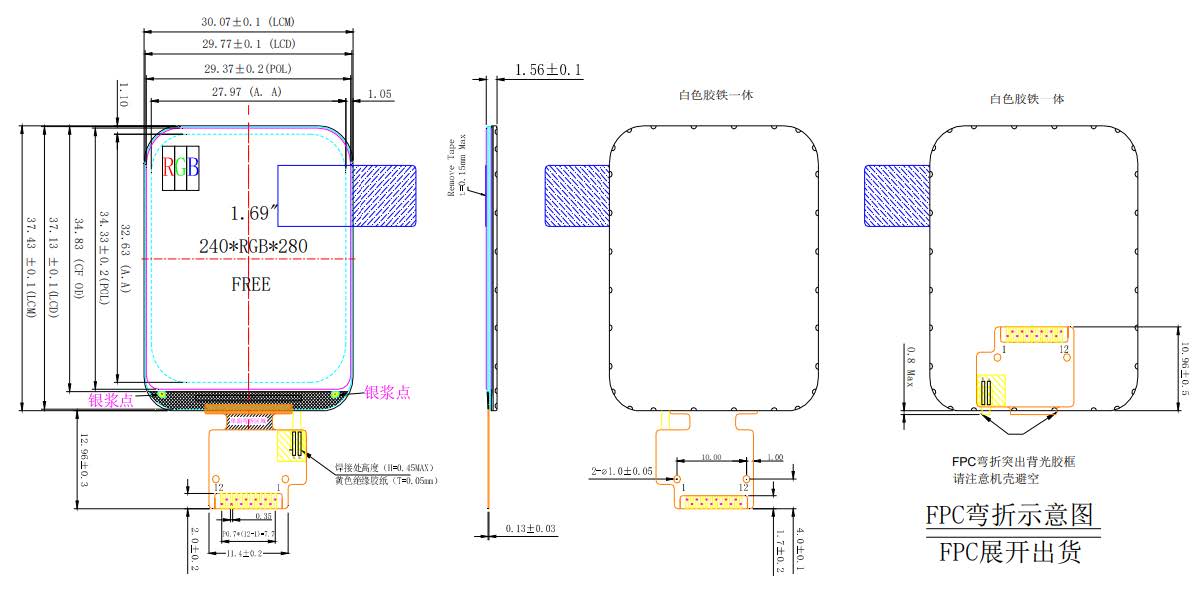

1.69 inch LCD drawing
