VIS018TN01 is a 1.77/1.8 inch TFT LCD display module model that adopts TN type LCD with 128*160 resolution. CTP (Capacity Touch Panel) can be added according to user requirements. Based on the large and long-term shipments of this 1.77/1.8 inch LCD panels, we can guarantee a stable supply of this LCD display module throughout the life cycle of your product.
Based on the panel’s low price and excellent storage and operating temperature range, this type of LCD display module can be widely used in smart homes, pos machines, industrial instruments (meters), and small medical equipment and other products.
FPCA shape alignment, polarizer material, and backlight brightness can all be adjusted according to your needs.
We also supply 1.77″ LCD module(with connector) for NOKIA feature phone repair, models include NOKIA105, NOKIA110, NOKIA106, NOKIA130, etc.
Other 1.77/1.8 inch LCD display module (LCM) models that can be replaced by VIS018TN01 are TM017FDH03, ET018QE01-D, PJ177Z12, etc.
| Panel From | Century/HSD |
|---|---|
| Panel Size | 1.77 inch |
| Panel Model | CT018TN01 |
| LCM Model | VIS018TN01 |
| Panel Type | a-Si TN TFT-LCD, LCM module |
| Resolution | 128(H) X 160(V) |
| Luminance | 250 cd/m² (Typ.) |
| Display Area | 28.03*35.04(mm) |
| Outline | 34*47*2.5(mm) |
| Interface Type | 33 pins MCU/SPI |
| View Direction | 12 o’clock |
| Touchscreen | Optional |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Pin No. | Symbol | I/O | Function |
| 1 | LEDK | P | Ground.LED back light(Cathode) |
| 2 | LEDA | P | LED back light(Anode) |
| 3 | GND | P | Ground. |
| 4 | VDD | I | Power supply |
| 5 | NC | I | No connection |
| 6 | IOVDD | I | Power for logic |
| 7 | CS | I | Chip select signal |
| 8 | RESET | I | Reset the display |
| 9 | RS | P | Command / parameter or display data selection pin |
| 10 | WR | P | Write enable pin I80 parallel bus system interface |
| 11 | RD | P | Read enable pin I80 parallel bus system interface |
| 12-19 | DB7-DB0 | – | Data pin |
| 20 | GND | P | Ground. |

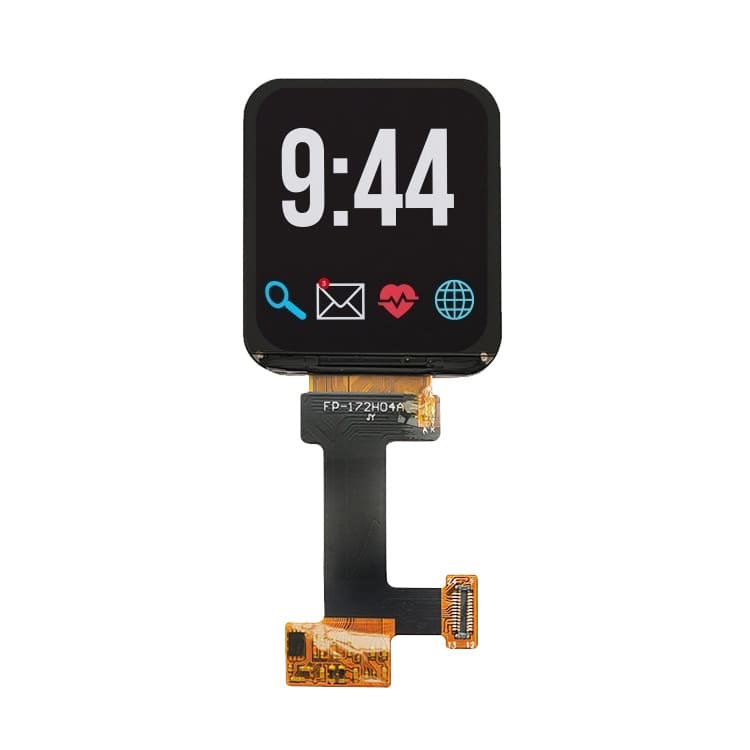

This 1.7 inch TFT LCD touch display adopts IPS type LCD with 356*400 resolution. It uses in-cell touch integration technology and includes CTP touch (Capacity Touch Panel). We can guarantee about 3 years supply of this touch LCD.
Based on this LCD’s ultra-high resolution, high brightness and slim appearance, it is particularly suitable for advanced applications such as smart watches, smart homes and digital products.
Flexible PCB dimension can be customized according to your needs.
We will also provide technical support such as initial codes and IC data.
| Panel From | HSD |
|---|---|
| Panel Size | 1.7 inch |
| IC | L-WEA2012 |
| LCM Model | VIS172T-IC04-LE |
| Panel Type | a-Si IPS TFT-LCD |
| Resolution | 356(H) X 400(V) |
| Luminance | 480 cd/m² (Typ.) |
| Display Area | 29.1*32.7(mm) |
| Outline | 31.5*37.22*1.56(mm) |
| Outline(with Touch Cover) | 33.94*41.14*3.53(mm) |
| Interface Type | 24 pins QSPI |
| View Direction | All |
| Touchscreen | CTP |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Please contact us for more accurate PDF datasheets, thanks.

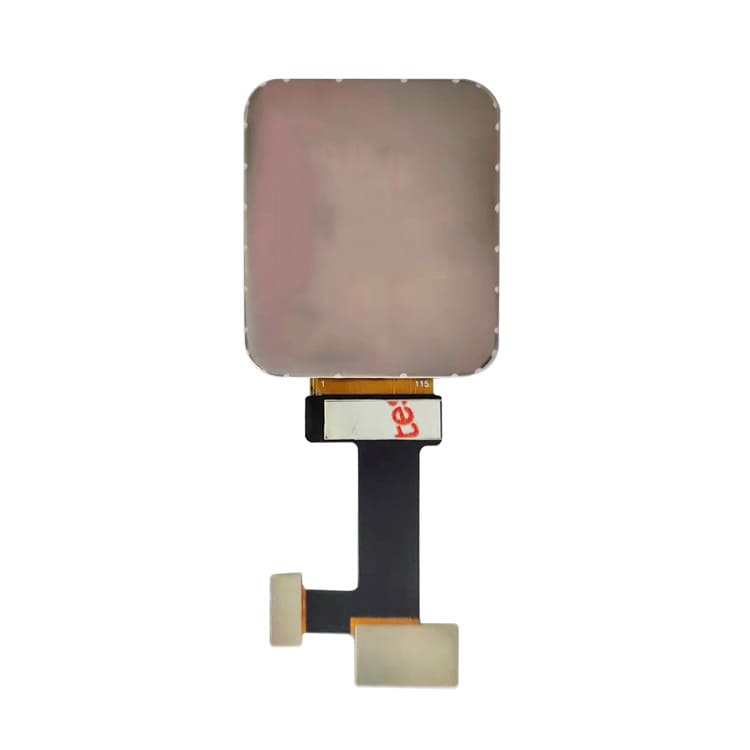

This 1.76 inch TFT LCD touch display adopts IPS type LCD with 320*380 resolution.You are free to choose whether you want CTP touch or not. We can guarantee about 3 years supply of this touch LCD.
Based on this LCD’s ultra-high resolution and high brightness, it is particularly suitable for advanced applications such as smart watches, smart homes and digital products.
Flexible PCB dimension&combination and CTP touch can all be customized according to your needs.
We offer a choice of Soldering, Plugging or Connector connections.
We will also provide extra technical support.
The video below shows the actual display of this LCD mounted smartwatch. Please refer.
| Panel From | Century |
|---|---|
| Panel Size | 1.76 inch |
| IC | ST77903 |
| LCM Model | VIS176-b15172 |
| Panel Type | a-Si IPS TFT-LCD |
| Resolution | 320(H) X 380(V) |
| Luminance | 400 cd/m² (Typ.) |
| Display Area | 27.79*33(mm) |
| Outline | 30.08*37.54*1.45(mm) |
| Outline(with Touch Cover) | 34.85*40.98*3 .45(mm) |
| Interface Type | 15 pins QSPI |
| Connection | Soldering/Plugging/Connector |
| View Direction | All |
| Touchscreen | CTP(optional) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Please contact us for more accurate PDF datasheets, thanks.
