Project Description

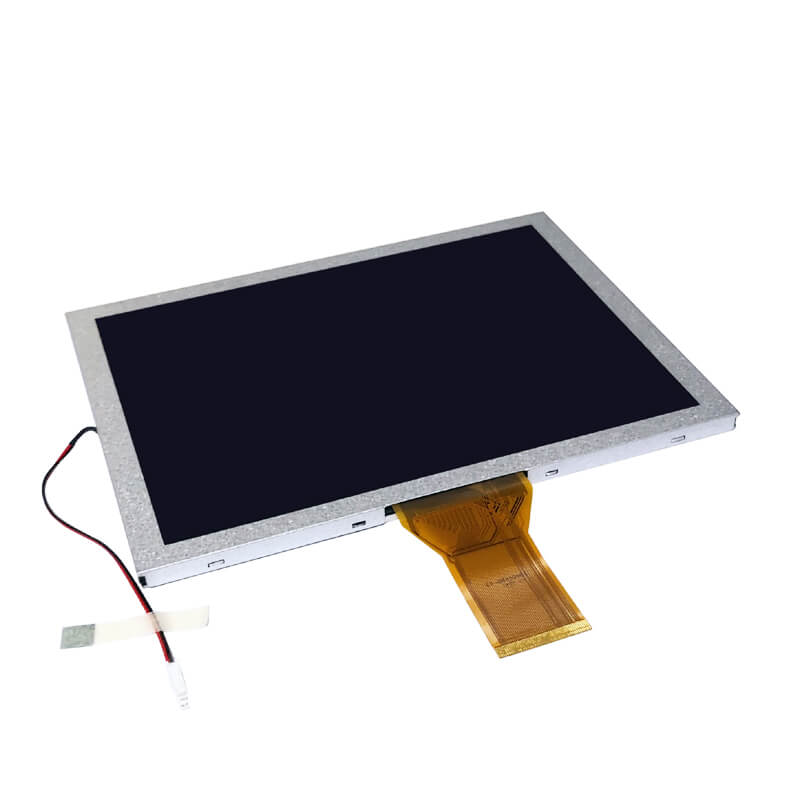

VIS080TN02S is 8 inch TFT LCD display panel module model that adopts 4:3 TN type LCD with 800*600 resolution. CTP (Capacity Touch Panel) and RTP(Resistive Touch Panel) can be added according to user requirements.
This 8 inch LCD module is specially developed for industrial and automotive products, so it has a long life cycle. We can guarantee a stable supply of this 8″ LCD display panel module throughout the life cycle of customer’s products.
Based on the panel’s 4:3 display ratio, high stability and excellent storage and operating temperature range, this 8 inch LCD display module can be widely used in industrial instruments (meters), car display and other products.
FPCA pin defines & shape alignment, polarizer material, and backlight brightness can all be adjusted according to your needs.
We also provide 8 ” LCD module with 800*480,1024*600 and 1024*768 resolution products for your choice. If interested, please contact us for more information.
Other 8 inch TFT LCD Display Screen Module(LCM) models（800*600） that can be replaced by VIS080TN02S are EJ080NA-05B, TM080SDH01, AT080TN42, A080SN03 V0, etc.
| Panel From | Innolux/BOE |
|---|---|
| Panel Size | 8 inch |
| Panel Model | EE080NA-06A, GT080S0Q-N11-1QP0 |
| LCM Model | VIS080TN02S |
| Panel Type | a-Si TN TFT-LCD, LCM module |
| Resolution | 800(H) X 600(V) |
| Luminance | 500 cd/m² (Typ.) |
| Display Area | 162.00*121.50(mm) |
| Outline | 183.00*141.00*6.20(mm) |
| Interface Type | 50 pins RGB/TTL |
| View Direction | 6 o’clock |
| Touchscreen | Optional |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Pin No. | Symbol | I/O | Function |
| 1-4 | NC | – | No connect |
| 5 | GND | P | Ground. |
| 6 | VCOM | I | Common voltage |
| 7 | VCC | P | Power for digital circuit |
| 8 | MODE | DE/SYNC mode select | |
| 9 | DE | I | Data enable pin |
| 10 | VS | I | Frame sync signal |
| 11 | HS | I | Line sync signal |
| 12-19 | B7~B0 | I | Blue data bus |
| 20-27 | G7~G0 | I | Green data bus |
| 28-35 | R7~R0 | I | Red data bus |
| 36 | GND | P | Ground. |
| 37 | DCLK | I | Data clock |
| 38 | GND | P | Ground. |
| 39 | L/R | I | Right/ left selection |
| 40 | U/D | I | Up/down selection |
| 41 | VGH | P | Gate ON voltage |
| 42 | VGL | P | Gate OFF voltage |
| 43 | AVDD | P | Power for Analog circuit |
| 44 | RESET | I | Global reset pin. |
| 45 | NC | I | No connection |
| 46 | VCOM | P | Common voltage |
| 47 | DITHB | I | Dithering function |
| 48 | GND | P | Ground. |
| 49 | NC | I | No connection |
| 50 | NC | I | No connection |
Long life cycle
4:3 display ratio
High stability
