Product  Image


1)  1.8 inch 240*280 IPS LCD



1.83 inch lcd for smart watch



2) 1.8 inch 320*385 IPS LCD

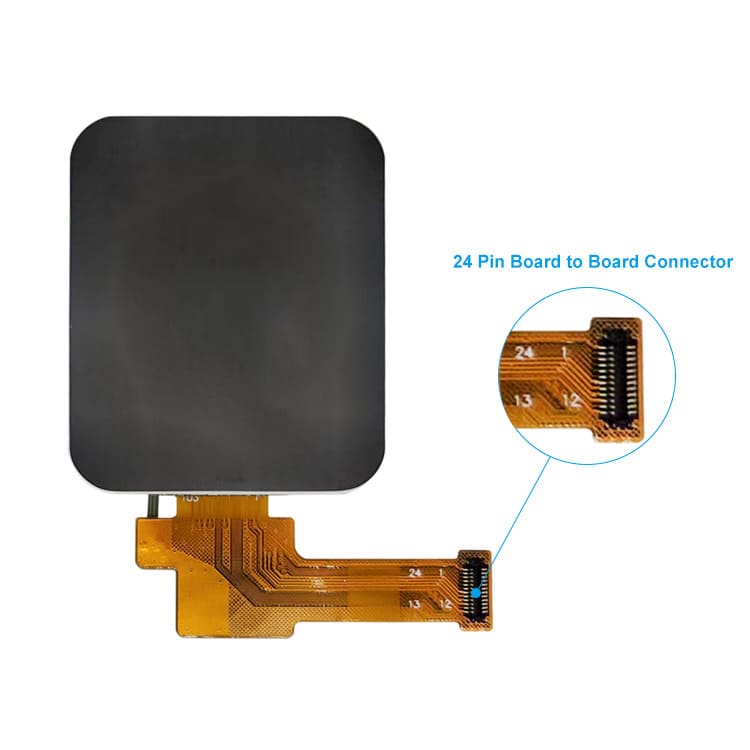

1) 1.8 inch 240*280 IPS LCD

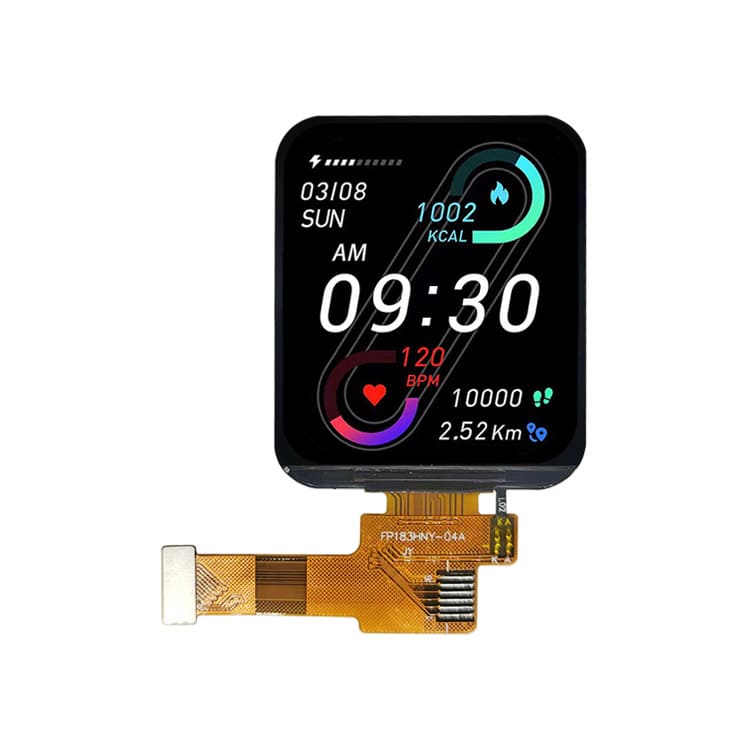

  • 1.8 inch smart watch lcd
  • 1.8 inch 240*280 smart watch lcd
  • 1.83 inch lcd for smart watch
  • 240*280 IPS display

  • High brightness

This 1.8 inch TFT LCD display module adopts IPS type LCD with 240*280 resolution. CTP (Capacity Touch Panel) can be added according to user requirements. we can guarantee 3+ years stable supply of this LCD display module throughout the life cycle of your product.

Tthis type of LCD display module can be widely used in smart homes, pos machines, industrial instruments (meters), and small medical equipment and other products.

Flexible PCB and touch panels can be customised to suit your needs.



Panel From HSD
Panel Size 1.83 inch
IC NV3030B
LCM Model VIS018TY-PC04
Panel Type a-Si IPS TFT-LCD, LCM module
Resolution 240(H) X 280(V)
Luminance 500 cd/m² (Typ.)
Display Area 30.2*35.23(mm)
Outline 32.2*39.23*1.46(mm)
Interface Type 24 pins   4 line SPI/8 bit 8080(MCU)
View Direction All
Touchscreen Optional
Operating Temperature -20 ~ 70 °C
Storage Temperature -30 ~ 80 °C




Please contact us for detailed PDF datasheet.

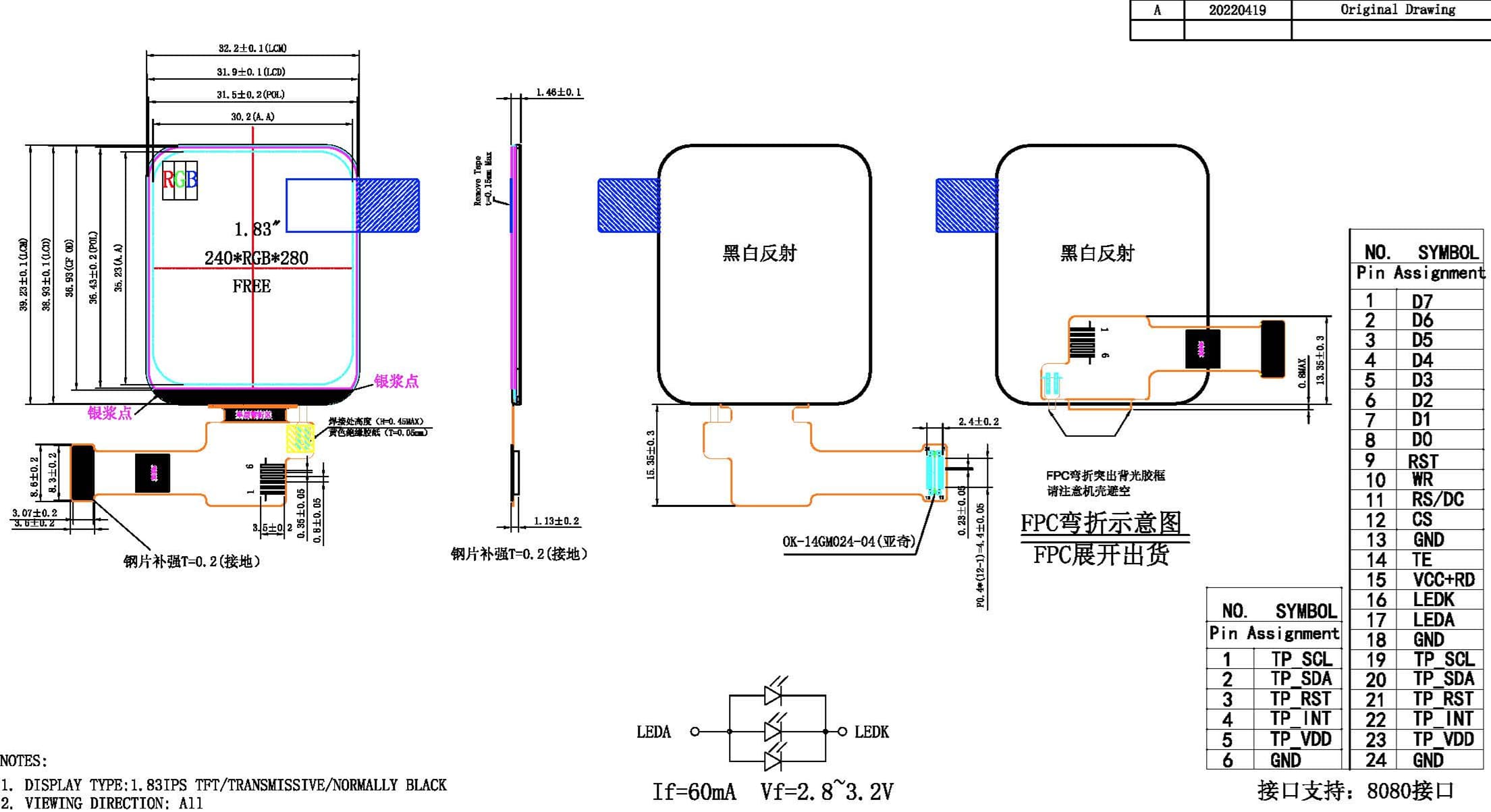

1.83 inch lcd drawing

2) 1.8 inch 320*385 IPS LCD

  • 320*385 IPS display

  • Excellent performance

This 1.8 inch TFT LCD touch display adopts IPS type LCD with 320*385 resolution. We can guarantee about 3 years supply of this LCD.

Based on this LCD’s ultra-high resolution and high brightness, it is particularly suitable for advanced applications such as smart watches, smart homes and digital products.

Flexible PCB dimension&combination and CTP touch can all be customized according to your needs.

We offer a choice of Soldering, Plugging or Connector connections.

We will also provide extra technical support.



Panel From Century
Panel Size 1.78 inch
IC GC9403
LCM Model VIS178014-A1
Panel Type a-Si IPS TFT-LCD
Resolution 320(H) X 385(V)
Luminance 400 cd/m² (Typ.)
Display Area 28.85*34.71(mm)
Outline 30.95*40.3*1.56(mm)
Interface Type 15 pins 4 line SPI
Connection Soldering/Plugging/Connector
View Direction All
Touchscreen CTP(optional)
Operating Temperature -20 ~ 70 °C
Storage Temperature -30 ~ 80 °C




Please contact us for more accurate PDF datasheets, thanks.

1.8 inch 320*385 LCD datasheet

1.8 inch smart watch display 320*385
