All 2.8 inch LCD Thumbnails

2.8 inch LCD

  • Differentiated LCD sizes & resolutions
  • 5+ years life time
  • Various shapes available
  • Various existing capacitive touch screens
  • Flexible MOQ for mass production

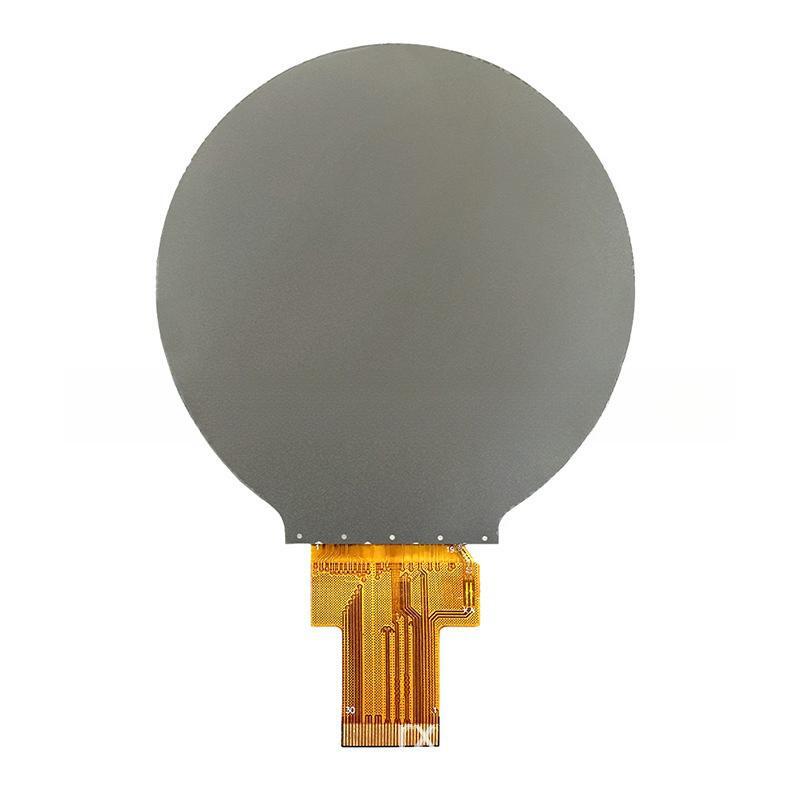

2.8" Circle LCD

Resolution 480x480
Type IPS
IC ST7701S
Interface MIPI
Connection Plugging
Luminance 300 cd/m2
Touch Capacitive(Optional)
Sto Temp -30~80 ℃
Oto Temp -20~70 ℃

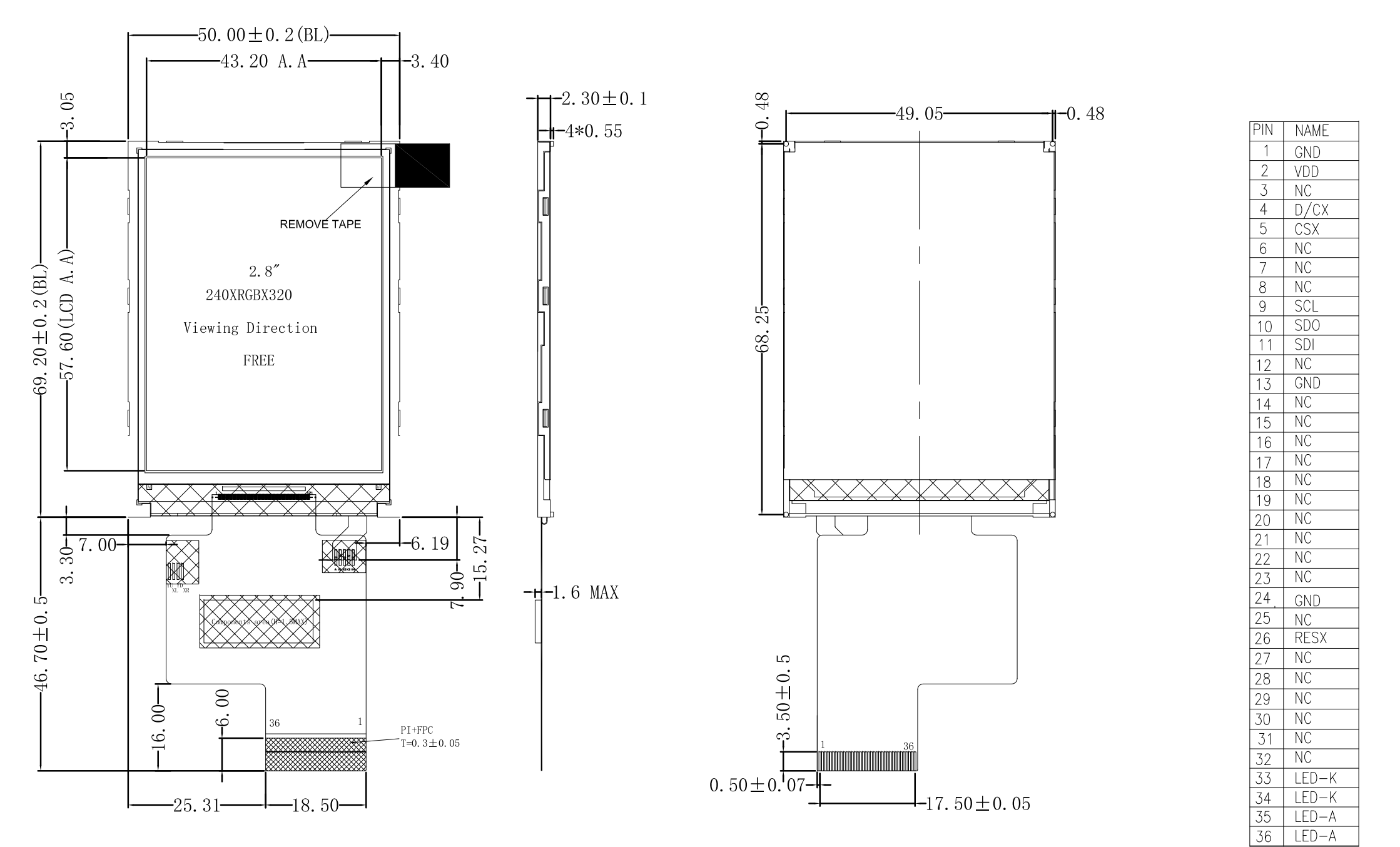

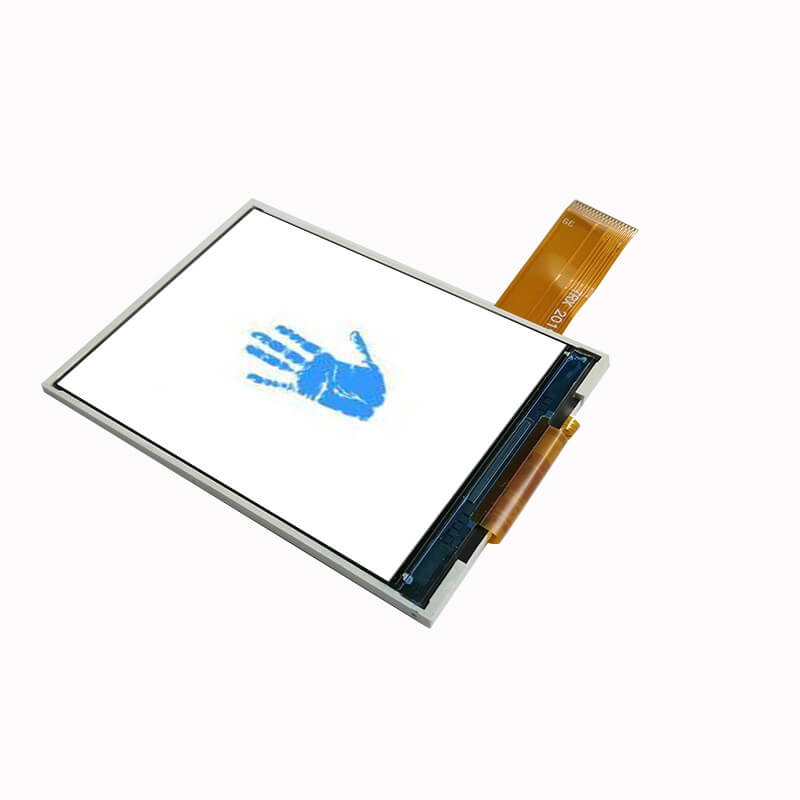

2.8" 240x320 LCD

Resolution 240x320
Type IPS/TN
IC ST7789V
Interface 4 line SPI/MCU
Connection Soldering/Plugging
Luminance 350 cd/m2
Touch CTP(Optional)
Sto Temp -30~80 ℃
Oto Temp -20~70 ℃

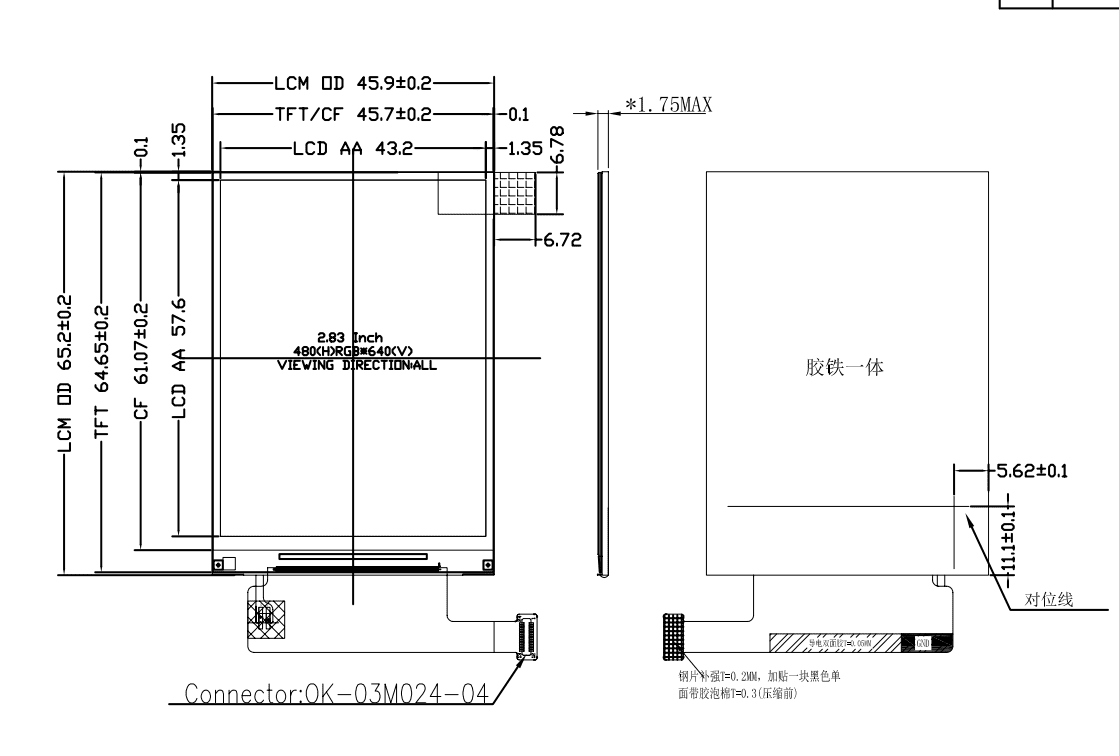

2.8" 480x640 LCD

Resolution 480x640
Type IPS
IC ST7701S
Interface SPI/RGB
Connection Connector/Plugging
Luminance 400 cd/m2
Touch CTP(Optional)
Sto Temp -30~80 ℃
Oto Temp -20~70 ℃

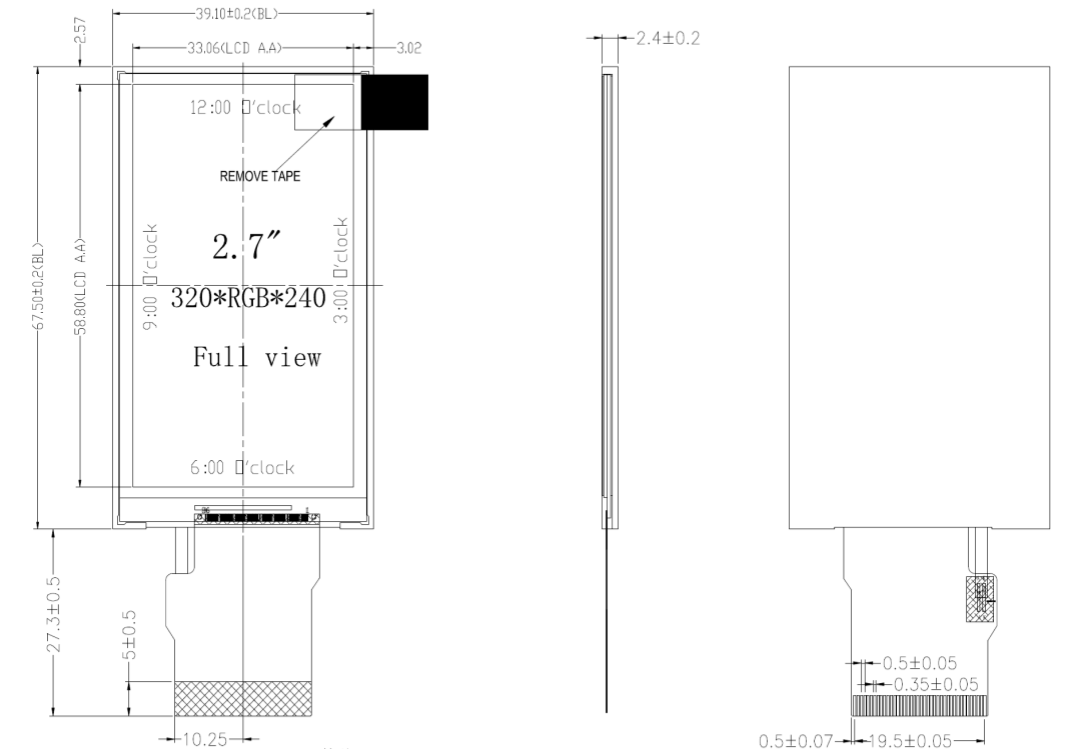

2.7" 240x320 LCD

Resolution 240x320
View TN(9 o'clock)
IC ILI8961A
Interface RGB 8bit
Connection Welding/Plugging
Luminance 300 cd/m2
Touch CTP/RTP (Optional)
Sto Temp -30~80 ℃
Oto Temp -20~70 ℃
